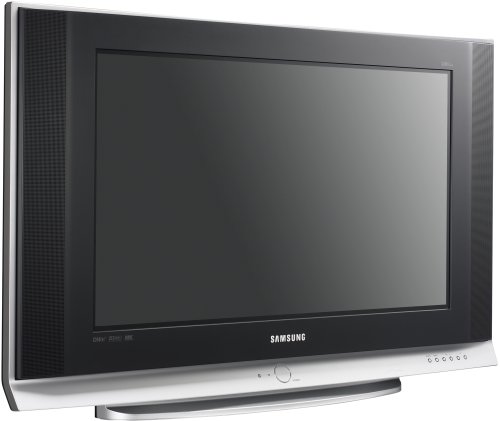

Samsung TXS3082WH 30" Wide Slimfit HDTV

You'll enjoy 480p, 720p and 1080i high-definition viewing right out of the box thanks to the built-in digital ATSC tuner, which pulls HD signals right from the airwaves. You can also connect the set to an optional receiver or cable/satellite set-top box using either the dual HDMI or dual component connections. An analog NTSC tuner receives standard-definition (SD) programming.

The TXS3082WH is packed to the gills with advanced video and audio features. The 3D Y/C digital comb filter constantly analyzes the three dimensions of picture height, picture width, and picture changes-over-time to dramatically reduce edge image artifacts while improving transition detail. The 3:2 pulldown cinema video processing feature detects and compensates film--which is shot at 24 frames per second (fps) compared with video's 30 fps rate--to video for a smooth theater-like experience at home. The velocity scan modulation function improves black to white image transitions for sharper detail and enhanced picture definition in high brightness operating conditions.

It also includes an Invar shadow mask for rendering detailed, high-contrast images free of geometric distortion. A shadow mask is a thin sheet of perforated metal behind the screen that restricts electron flow, each hole in the sheet corresponding to a single pixel. An Invar mask uses an alloy that's especially resistant to the high temperatures generated by the electron beam, allowing a brighter, clearer picture.

Choose the mode (standard, dynamic, movie, or custom with adjustable brightness, contrast, sharpness, and color selections) that best suits the program you're watching. You can also select from five screen filling modes--normal, wide, zoom 1, zoom 2, or panorama (which stretches less in the middle and more towards the edge). It has a number of convenience features, including Remote Surf timer (returns TV to original channel so other channels can be browsed during commercial breaks), sleep timer, V-Chip parental controls, auto channel programming, channel labeling, and tri-lingual on-screen displays (English, French, and Spanish).

It features two built-in, 5-watt speakers and right/left stereo output for connection to a home theater audio system. The Auto Volume Leveler feature keeps audio volume consistent during channel changing to minimize static sound bursts, and it offers four preset sound modes (standard, movie, music, and speech). High-quality virtual surround sound can be experienced with just the speakers built into the sides of the TV. SRS TruSurround XT technology delivers an amazing, simulated 3D effect with clear dialog and powerful bass. Enjoy progressive scan DVD playback or game play using the component video inputs. The full line-up of video and audio connections includes:

• Composite AV (RCA): 2 (1 side) in, 1 out
• S-Video: 1 (side) in
• Component Video: 2 in
• HDMI: 2 in
• RF: 2 in

Tech Talk
HDMI is a lossless, uncompressed, all-digital audio/video interface to link any audio/video source (such as a set-top box, DVD player, or AV receiver) with your TV--all over a single cable. It provides up to a 5 GB per second bandwidth for transmitting pure digital video and audio signals with no degradation in the transfer. It can carry up to eight discrete audio channels, making it compatible with 7.1-channel surround sound systems. Signals are encrypted with HDCP (High-bandwidth Digital Content Protection) to prevent recording. HDMI is fully backward-compatible with most DVI connections .

Component video (also called Y/Pb/Pr) features a three-jack video input, which provides separate connections for luminance (Y), blue color difference (PB) and red color difference (PR). This results in increased bandwidth for color information, resulting in a more accurate picture with clearer color reproduction and less bleeding than you would get with S-Video or composite (RCA yellow video plug) connections. You will need a separate RCA left/right audio cable for sound.

High Definition Formats: The most common high-def (HD) video format is 720p, which displays video at 720 vertical by 1280 horizontal pixels. The "p" denotes that it is progressive scan, meaning that all video lines are filled at the same time. The 1080i format displays video at 1080 vertical by 1920 horizontal pixels, and the "i" means that it is interlaced (the old-school way of presenting video where the screen scans the odd-numbered video lines first, then the even-numbered lines). The 1080p format has the same pixel resolution as 1080i, but it is a progressive scan format and thus has a constant vertical resolution of 1080 lines.

TruSurround XT audio adds three new audio enhancement technologies to produce an amazingly immersive sound experience.

• Dialog Clarity brings movie dialog into OfocusO during the playback of any surround-encoded material to make speech much clearer and crisper.
• TruBass creates incredible deep rich bass allowing a person to perceive significantly deeper, richer low bass tones that are far beyond the physical low frequency capabilities of the speaker itself.
• The SRS WOW feature widens the soundstage by processing standard two-channel stereo material as well as multi-channel encoded material for a dramatic improvement in the playback of any stereo audio over a two-speaker system.

What's in the Box
Flat CRT HDTV, remote control (with batteries), printed operating instructions

Product Description
Samsung has launched the new generation of SlimFit with the cutting-edge TX-S3082WH. The latest 30" Widescreen SlimFit builds upon the success of the industry's top-selling 30" CRT TV model, with an even sleeker design. Imagine breathtaking clarity, stunningly vibrant colors, and seamless multimedia integration, tucked into a trim black cabinet that is one-third thinner than a traditional CRT TV. You'll enjoy rich Digital Dynamic SRS TruSurround sound, emitted through built-in silver side speakers that add a smart touch to the overall aesthetic appeal.
